Feichter-Karussell-Drehmaschinen
|
Portal-Dreh-Fräszentren
|
Vertical Boring an Turning Mils
|
|
|
|
|

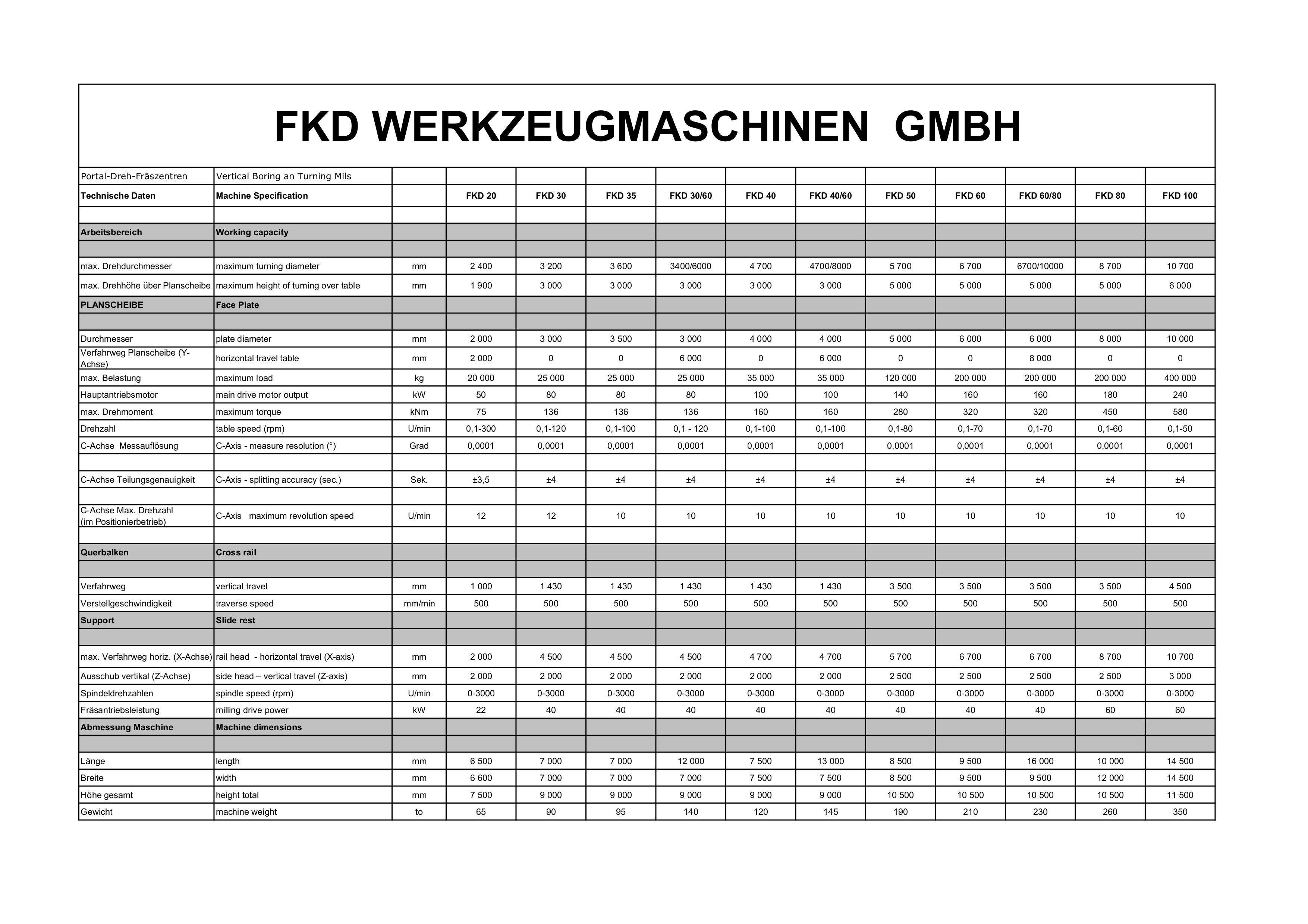

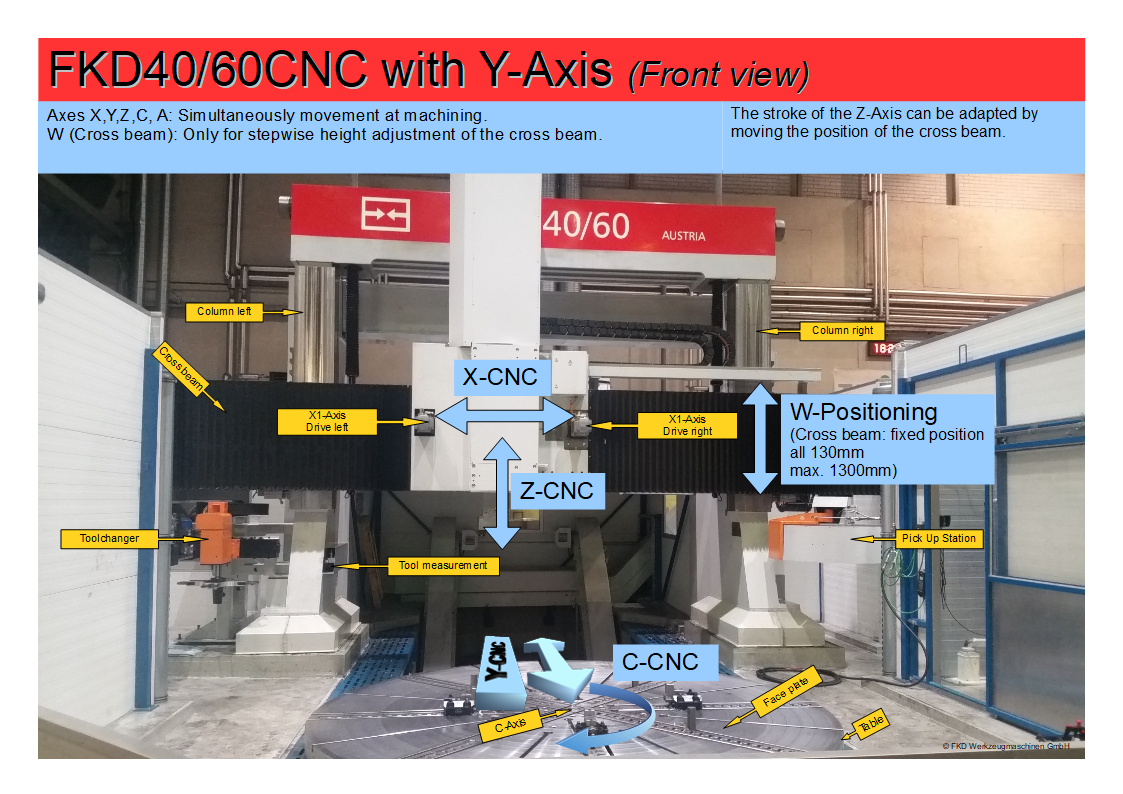

Technische Daten
|
Machine Specification
|
|
FKD 20
|
FKD 30
|
FKD 35
|
|
|
|
|
|
|
Arbeitsbereich
|
Working capacity
|
|
|
|
|
|
|
|
|
|
|
max. Drehdurchmesser
|
maximum turning diameter
|
mm
|
2400
|
3200
|
3600
|
max. Drehhöhe über Planscheibe
|
maximum height of turning over table
|
mm
|
1900
|
3000
|
3000
|
PLANSCHEIBE
|
Face Plate
|
|
|
|
|
|
|
|
|
|
|
Durchmesser
|
plate diameter
|
mm
|
2000
|
3200
|
3500
|
Verfahrweg Planscheibe (Y-Achse)
|
horizontal travel table
|
mm
|
2000
|
4500
|
4500
|
max. Belastung
|
maximum load
|
kg
|
20000
|
50000
|
50000
|
Hauptantriebsmotor
|
main drive motor output
|
kW
|
50
|
100
|
100
|
max. Drehmoment
|
maximum torque
|
kNm
|
75
|
136
|
136
|
Drehzahl
|
table speed (rpm)
|
U/min
|
0,1-300
|
0,1-120
|
0,1-100
|
C-Achse Messauflösung
|
C-Axis - measure resolution (°)
|
Grad
|
0,0001
|
0,0001
|
0,0001
|
|
|
|
|
|
|
C-Achse Teilungsgenauigkeit
|
C-Axis - splitting accuracy (sec.)
|
Sek.
|
±3,5
|
±4
|
±4
|
|
|
|
|
|
|
C-Achse Max. Drehzahl
|
C-Axis maximum revolution speed
|
U/min
|
12
|
12
|
10
|
|
|
|
|
|
|
Querbalken
|
Cross rail
|
|
|
|
|
|
|
|
|
|
|
Verfahrweg
|
vertical travel
|
mm
|
1000
|
1430
|
1430
|
Verstellgeschwindigkeit
|
traverse speed
|
mm/min
|
500
|
500
|
500
|
Support
|
Slide rest
|
|
|
|
|
|
|
|
|
|
|
max. Verfahrweg horiz. (X-Achse)
|
rail head - horizontal travel (X-axis)
|
mm
|
2000
|
4500
|
4500
|
Ausschub vertikal (Z-Achse)
|
side head – vertical travel (Z-axis)
|
mm
|
1500
|
1500
|
1500
|
Spindeldrehzahlen
|
spindle speed (rpm)
|
U/min
|
0-3000
|
0-3000
|
0-3000
|
Fräsantriebsleistung
|
milling drive power
|
kW
|
22
|
22
|
22 (30)
|
Abmessung Maschine
|
Machine dimensions
|
|
|
|
|
|
|
|
|
|
|
Länge
|
length
|
mm
|
8500
|
11000
|
11000
|
Breite
|
width
|
mm
|
6600
|
8000
|
8000
|
Höhe gesamt
|
height total
|
mm
|
7500
|
10500
|
10500
|
Höhe über Flur
|
height over floor
|
mm
|
7000
|
8000
|
8000
|
Gewicht
|
machine weight
|
to
|
75
|
145
|
155
|
|
|
